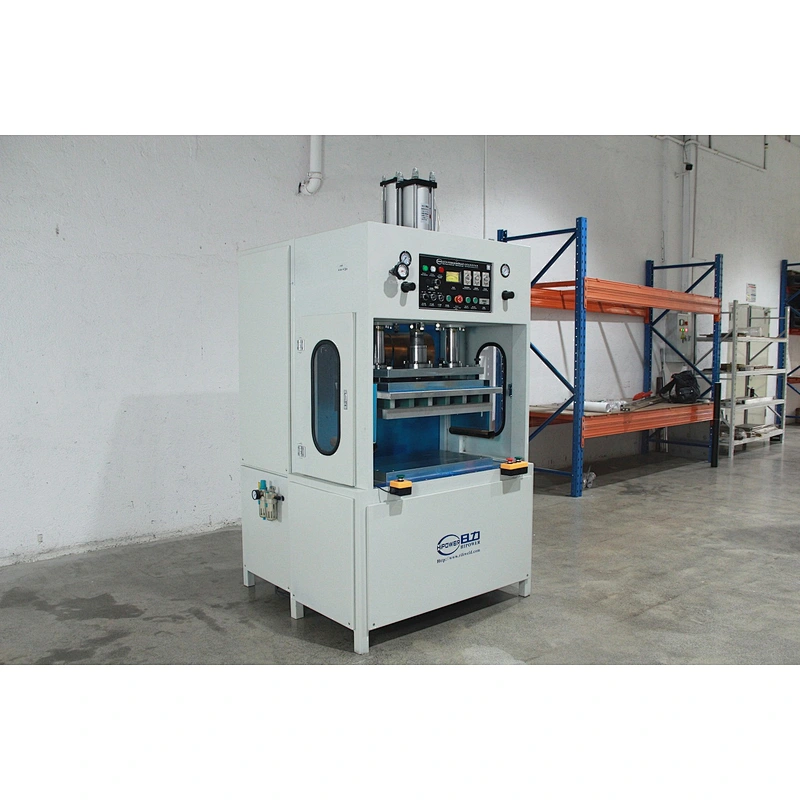

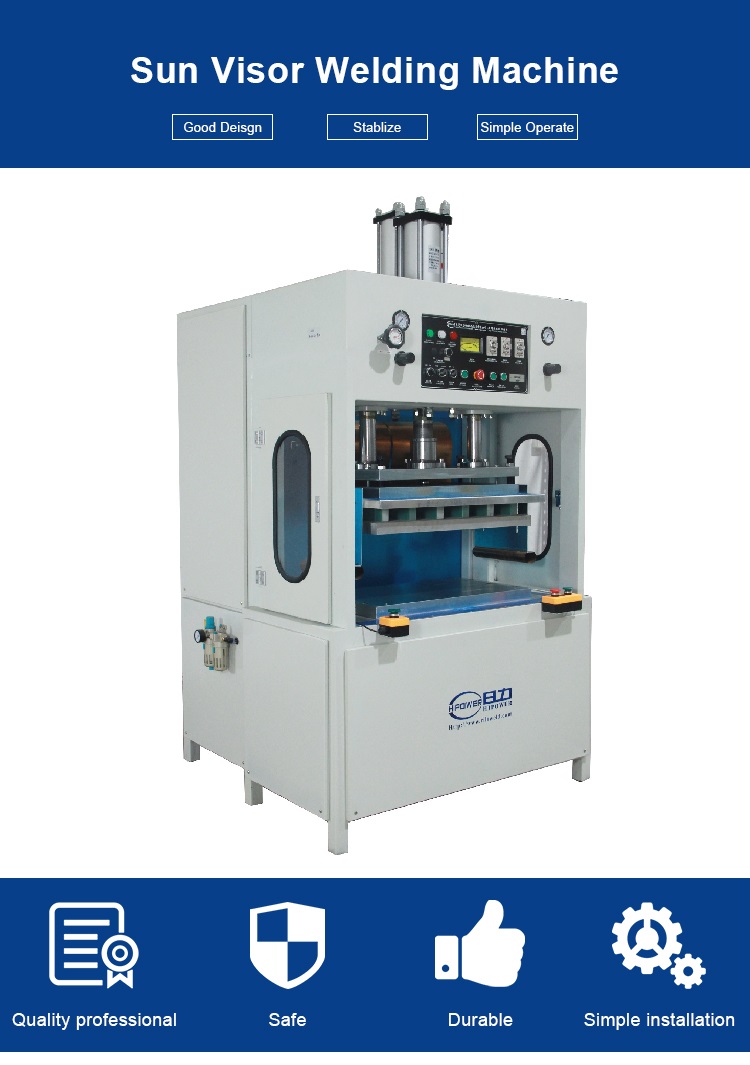

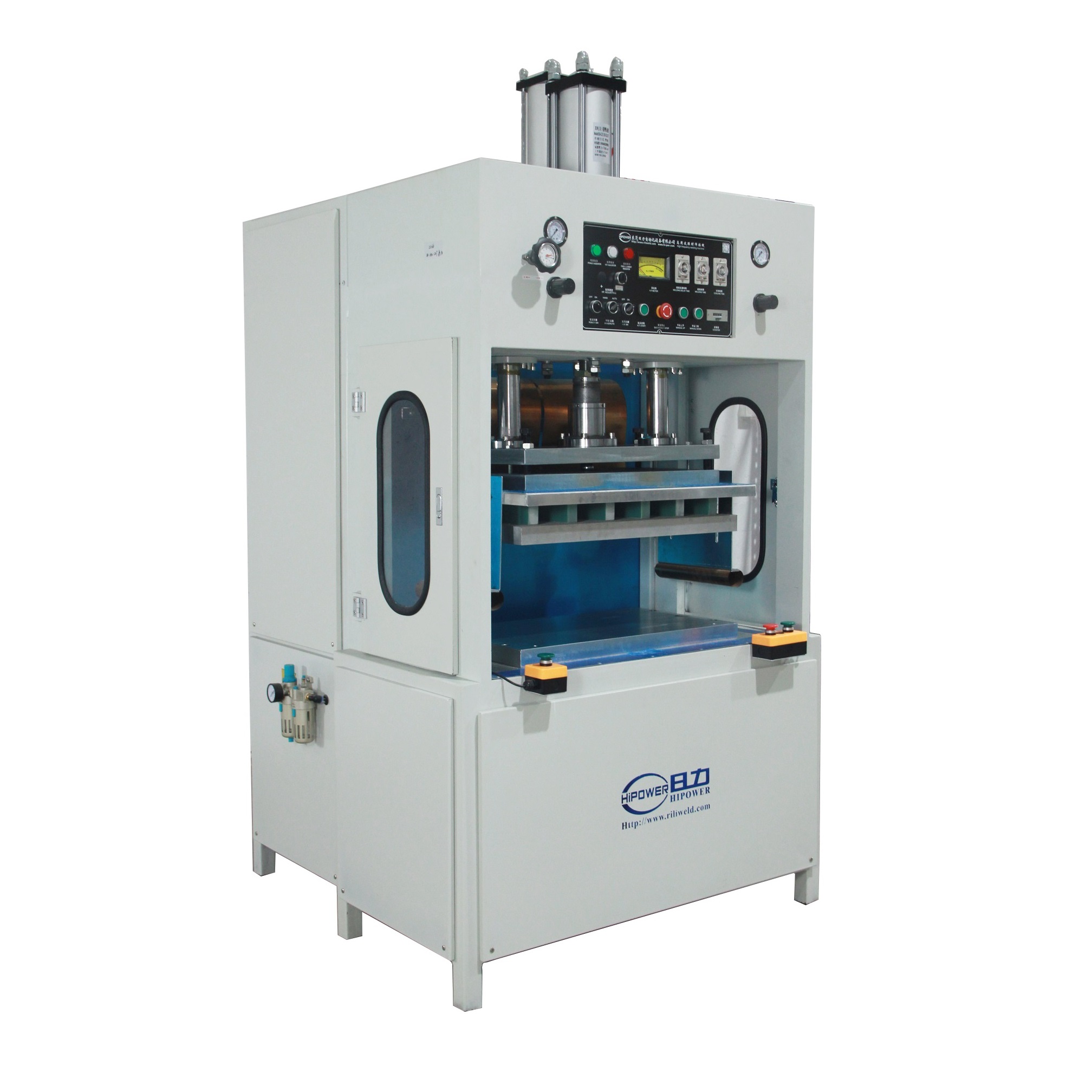

High Frequenc Welding Machine for Automobile Carpet

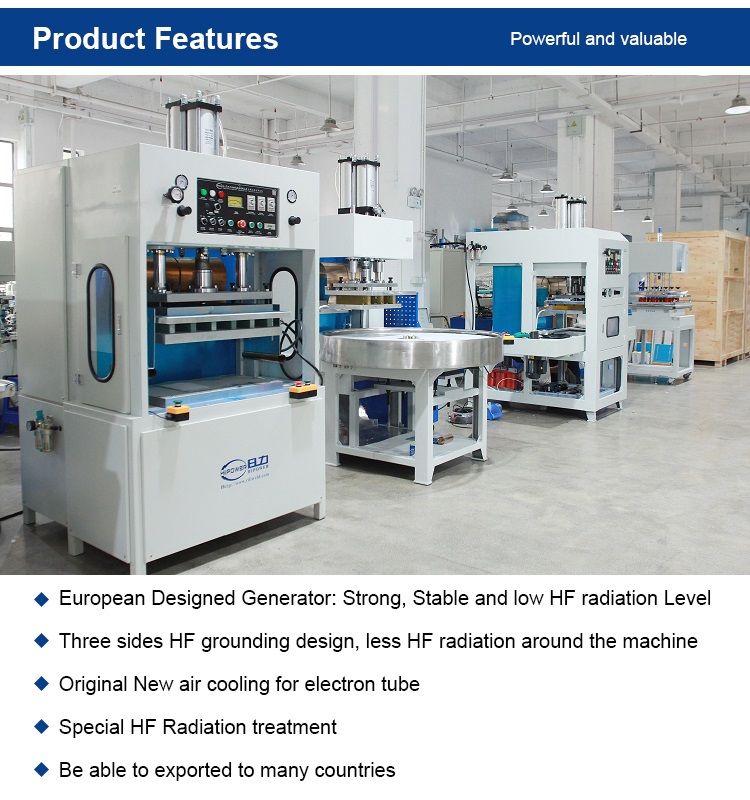

Features:

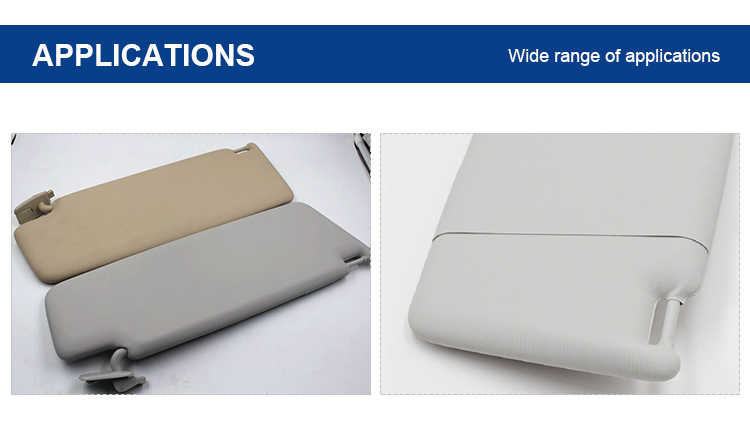

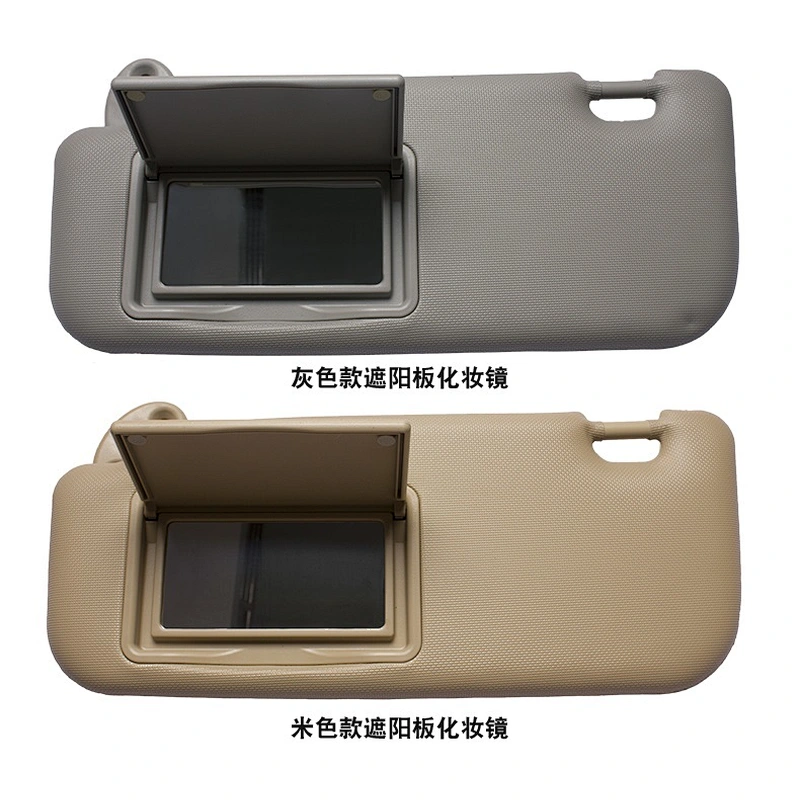

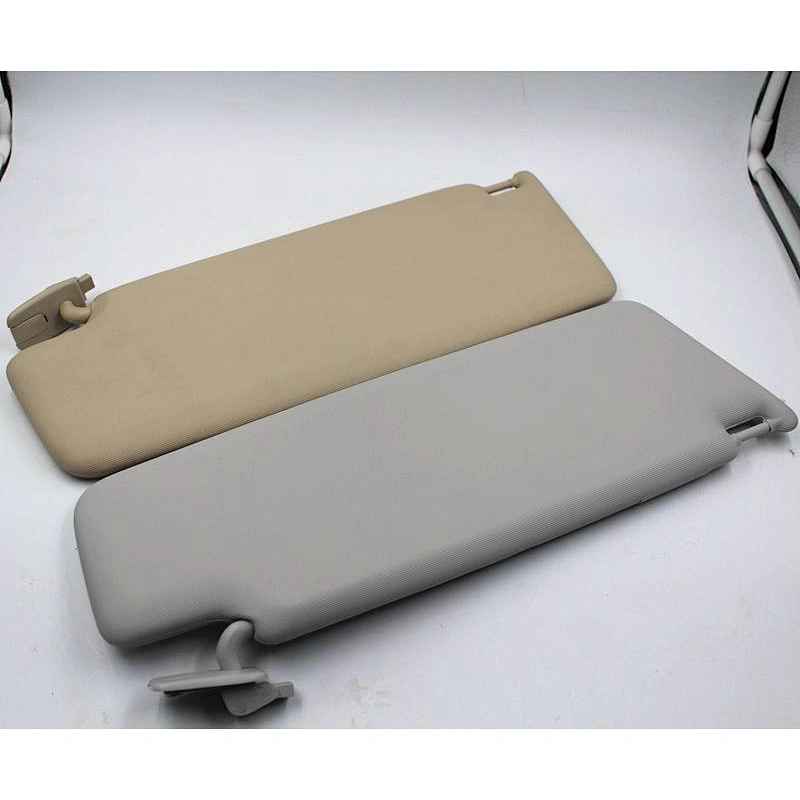

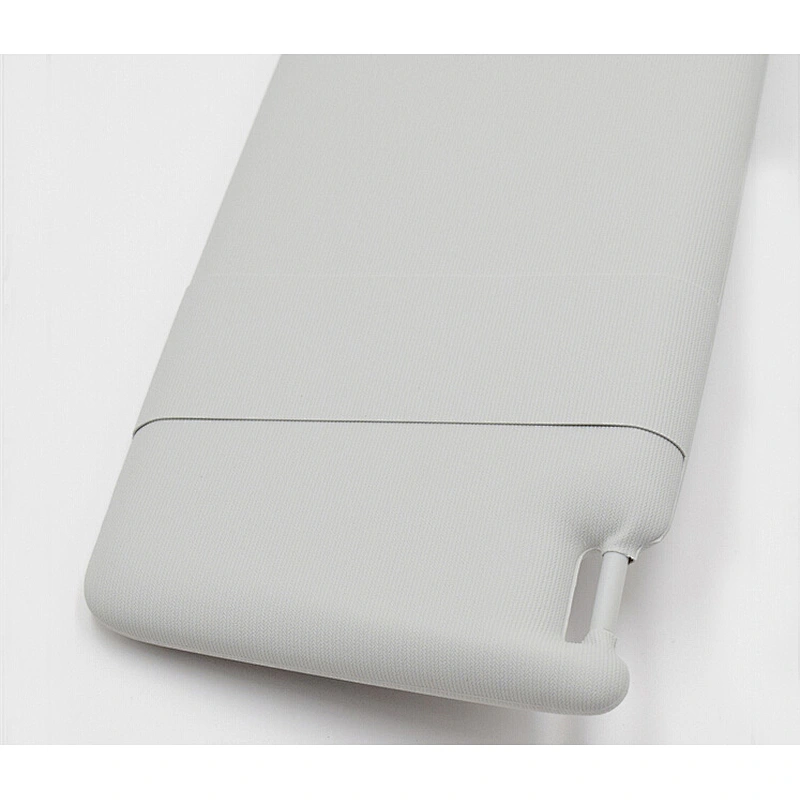

1.Specialize for making car sunvisor.
2.Good for welding environmental production dress glue products like APET,PETG,GAG materials.
3.Can weld and cut simultaneously.
4.Shuttle way with two working position and work automatic.
5.accurate-orientation, error+20um.
6.Cutting pressure can adjust from 1to 50 ton 7.Firm in structure,stable and realible in output.
8.Adopting high sensitive anti-sparkle device NL5557 to avoid damaging the mould efficiency.
9.Operation mode: oil+pneumatic or pure-pneumatic.

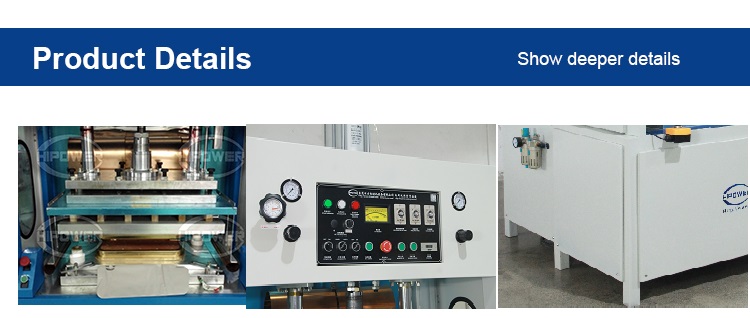

Product details Specification
MODEL: HR-10KW-20T
POWER: 10KW
POWER SUPPLY: 220V/380V 50/60Hz
FREQUENCY: 27.12MHz
ELETRONIC POWER: 18KVA
RECTIFIER: SILICON DIODE
VIBRATIONAL TUBE: E3069
MAXPRESSURE: 20T
MAX GAP OF ELECTRODES: 200MM
SIZE OF ACTIVE HORN: 100MM
SIZE OF UP ELECTRODE: 400*700MM / On Request
SIZE OF WORKING PLATE: 400*700MM / On Request
SCALE OF TEMPERATURE: 30-200C Adjustable
WELD TIME: 0-10s Adjustable
PRODUCTIVITY Equal or Less 5000times/8h
NET WEIGHT 1.5T
OVERALL DIMENTION 1920*1200*1260MM
