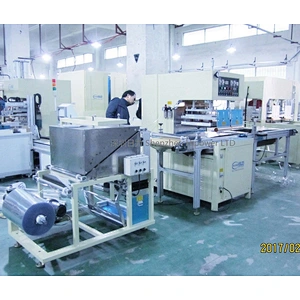

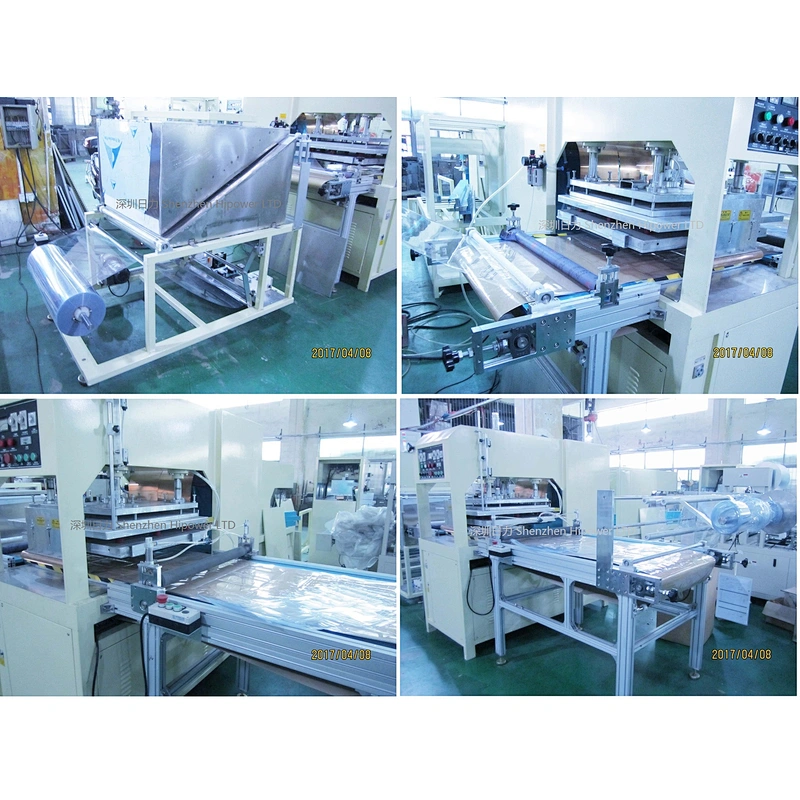

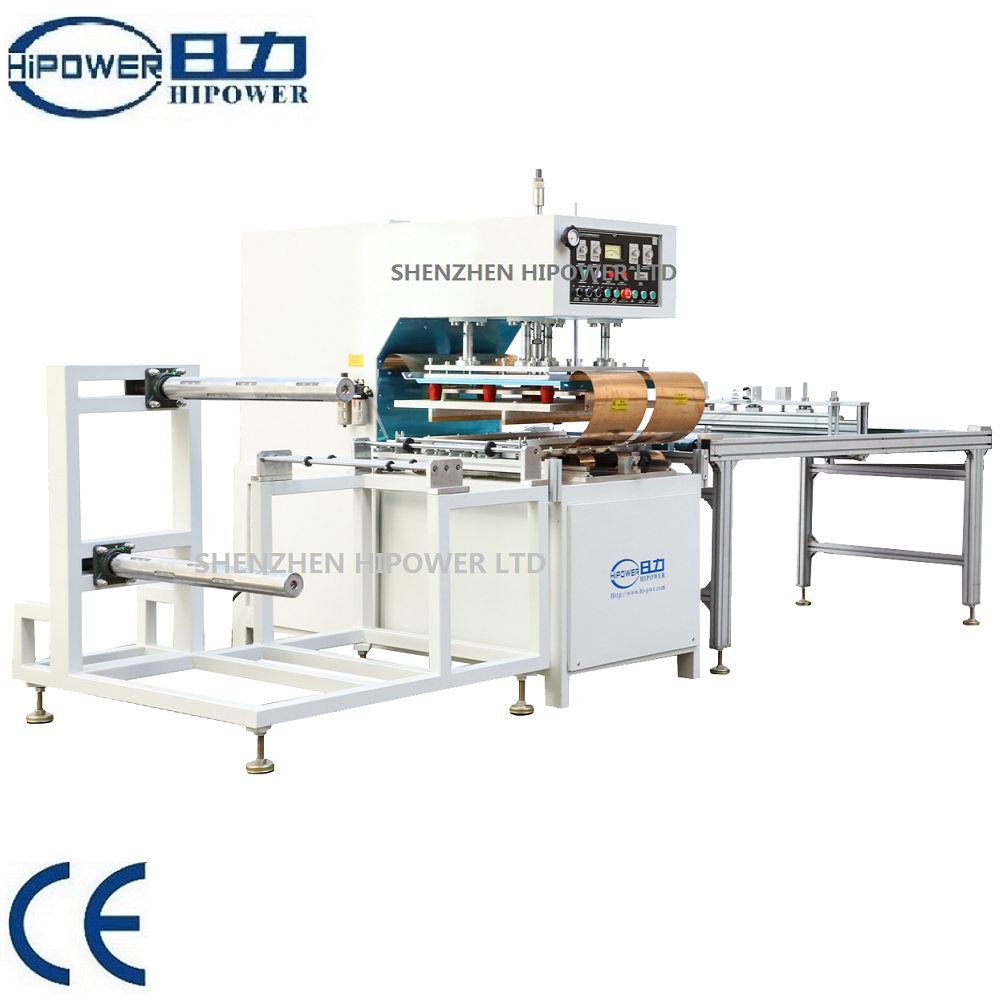

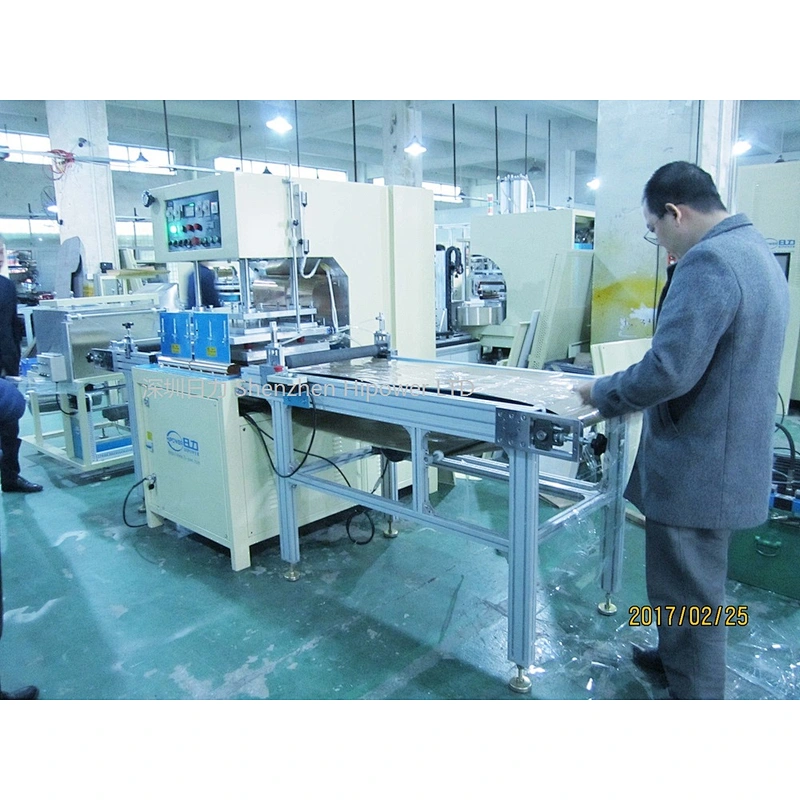

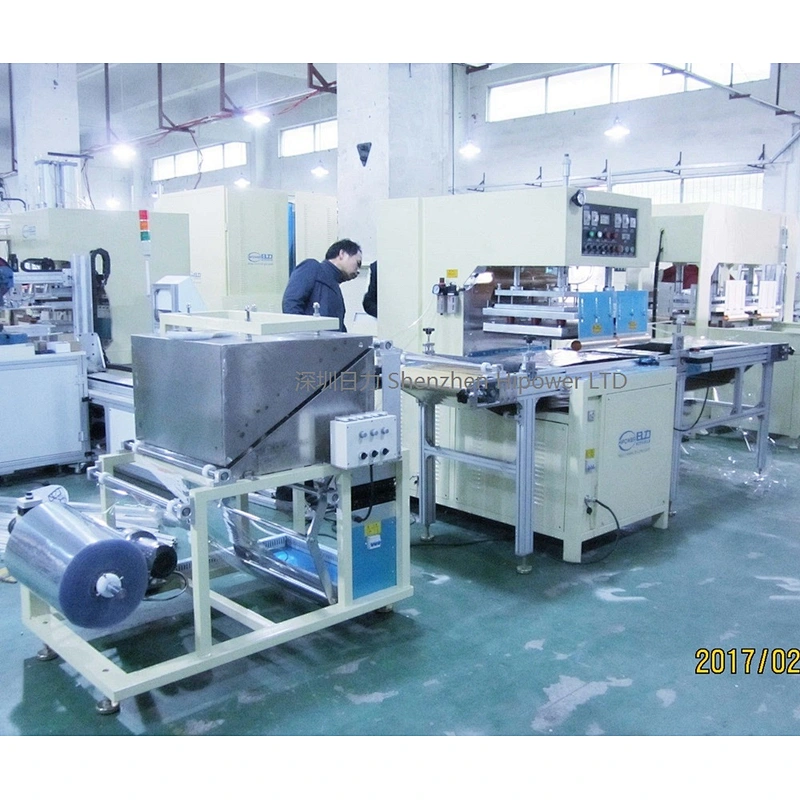

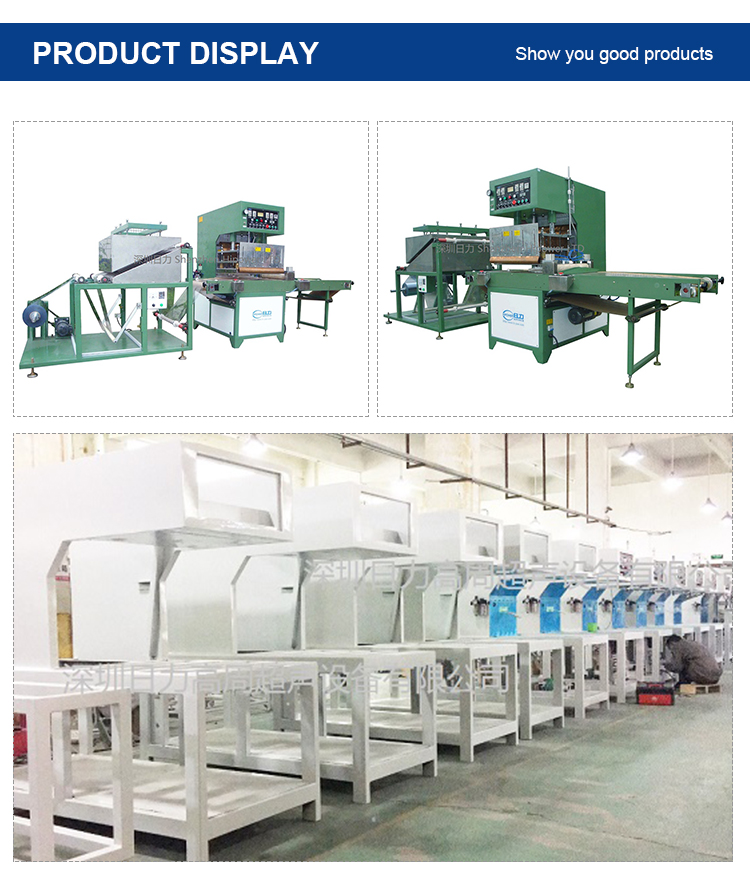

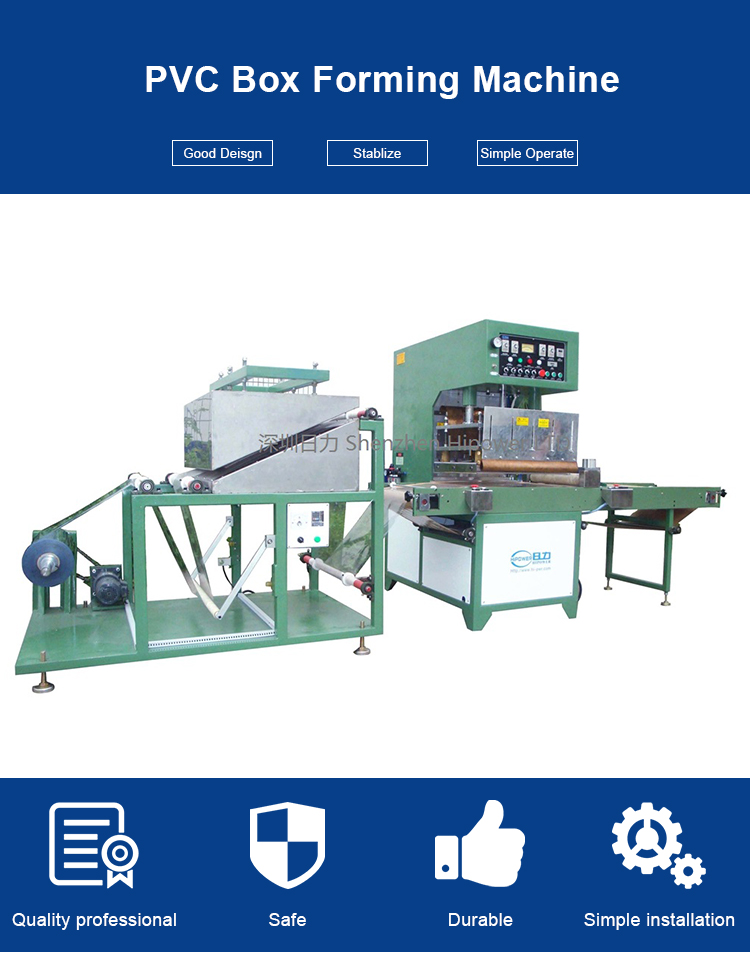

high frequency PVC soft crease forming machine
also known as PVC folding box /Offset Printing Folding Boxes/PVC foldable box

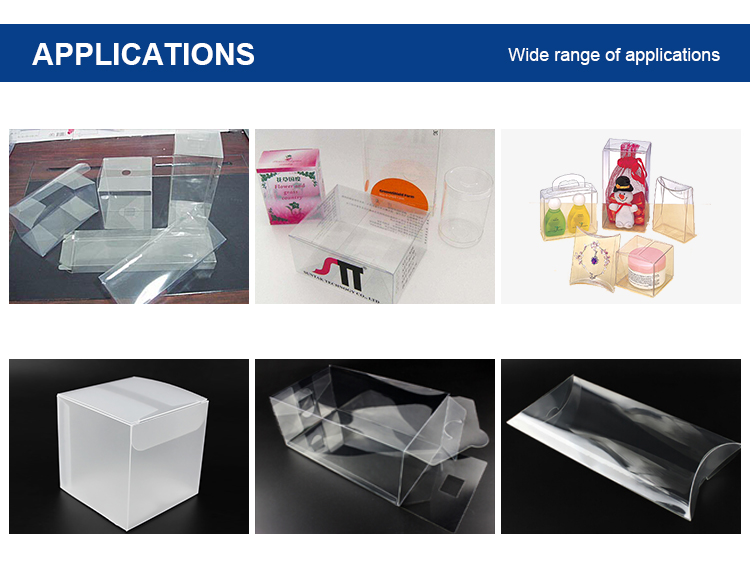

Application:

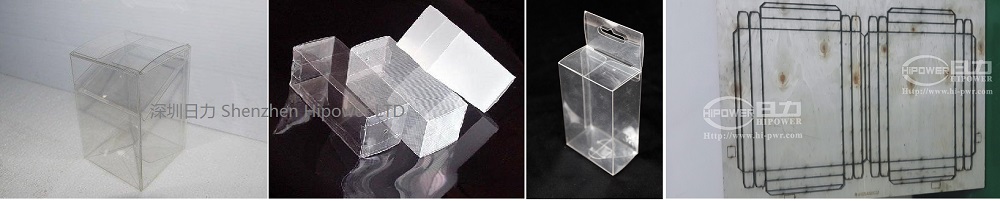

It is especially designed for Clear Packaging Boxes, soft crease box forming, PVC folding box, Transparent Foldable plastic box making.
The plastic box can be made of PVC films.
Depend on plastic material type: Film Sheets or Plastic Roll, you can choose a semi-auto machine, or an automated machine.
Products: For PVC Box

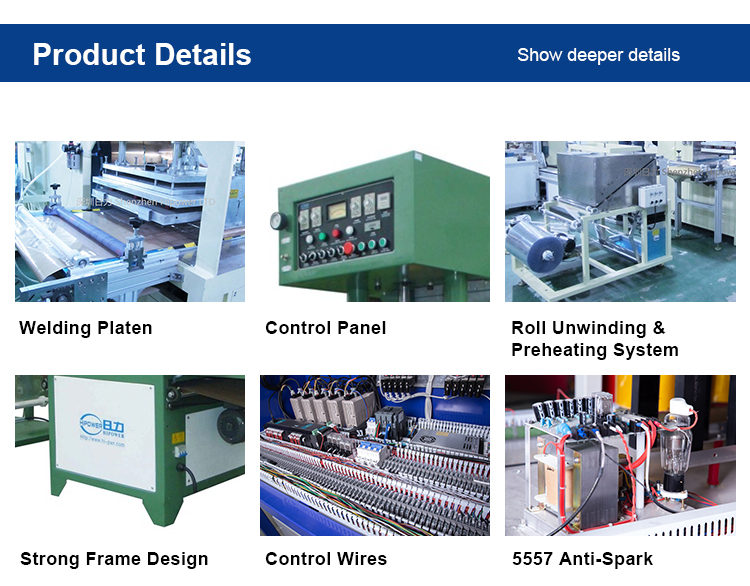

Product details Specification
Model HR-8000Z HR-15KWZ
Output Power 8000W 15000W
Anti-Spark SystemU.S.A. PL-5557 High sensitive anti-spark system
Voltage 3P AC 380V/220V/440V 50Hz-60HZ or customize
Frequency 27.12MHz +/- 0,6 %
Input power 15KVA 25KVA
Rectifier SILICON DIODE
Oscillation tube 7T69RB 8T85RB
Max pressure 1000kg 1500kg
Operation mode Pneumatic Operated
Max gap of electrodes 200mm
Size of active horn 150mm
Upper Electrode (W*H*L) 500*700mm 700*800mm
Size of Work Table (L*W) 500*700mm 700*800mm
Mould Heating Temperature30-200℃ Adjustable
Welding time 0.01~9.99s adjustable
Net weight 1500kgs 1500kgs
Foreseen productivity: According to welding times and operator skills
