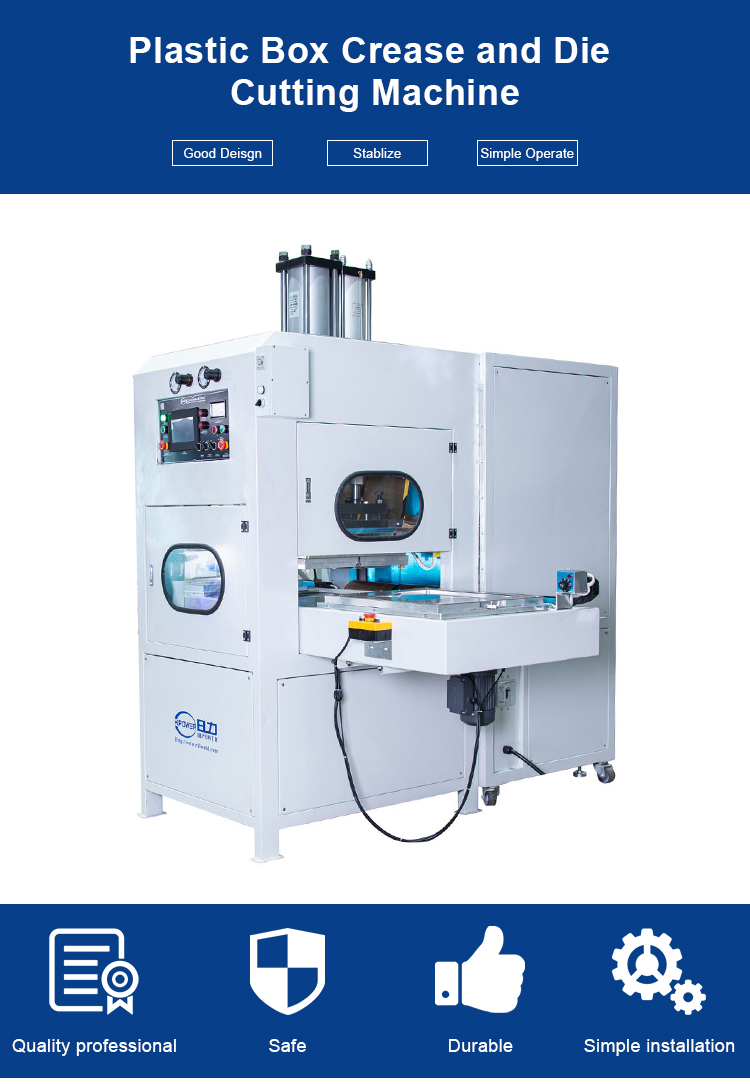

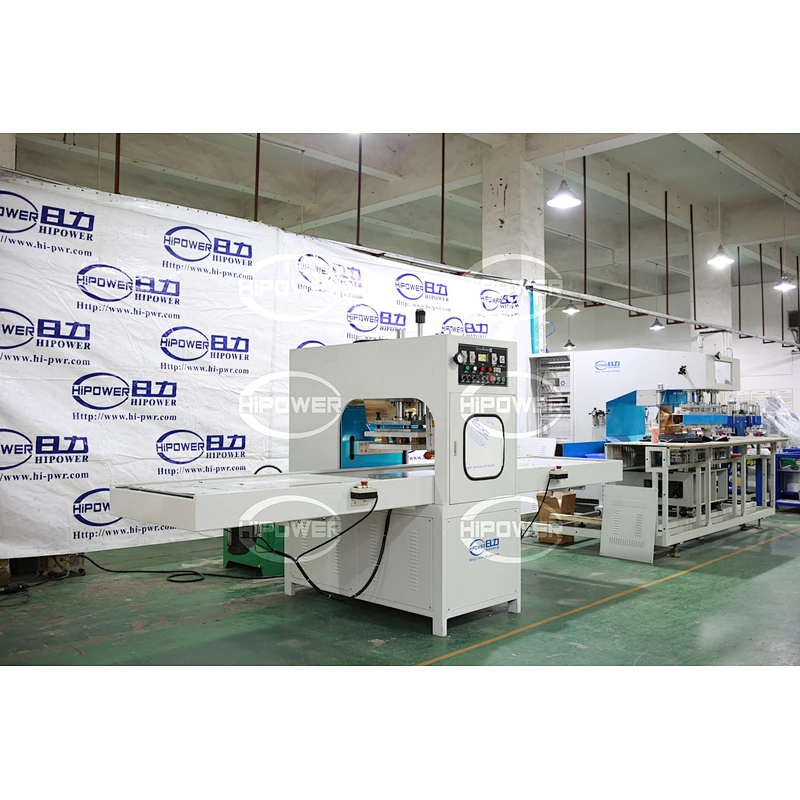

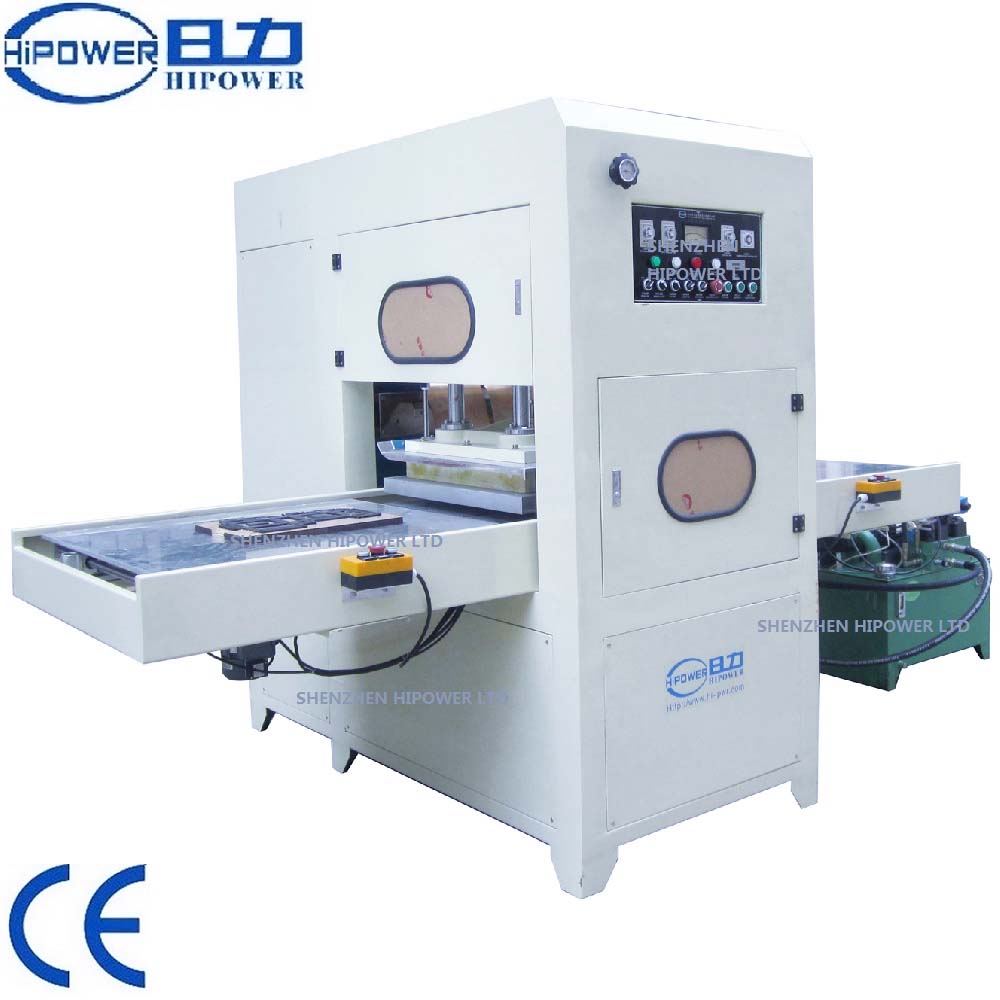

Hydraulic HF PET Soft Crease Box Welding and Cutting machine

Plastic Box Forming and Die Cutting Machine,Vertical Cycle Table

Application:

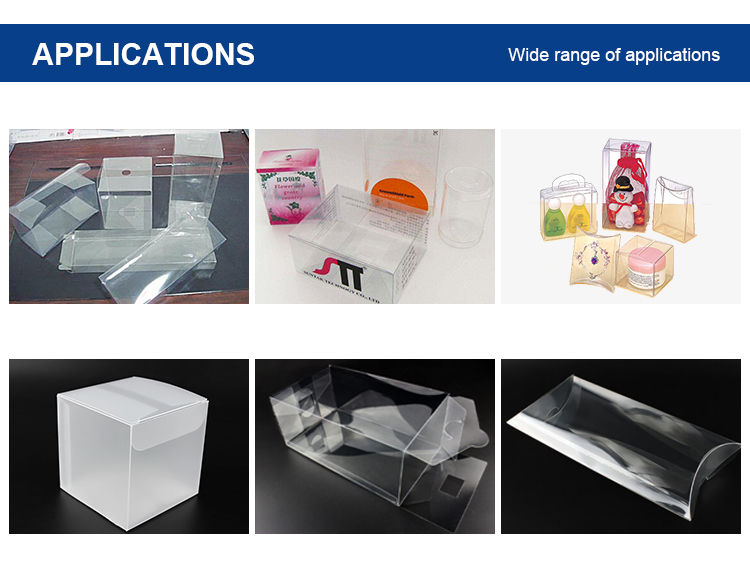

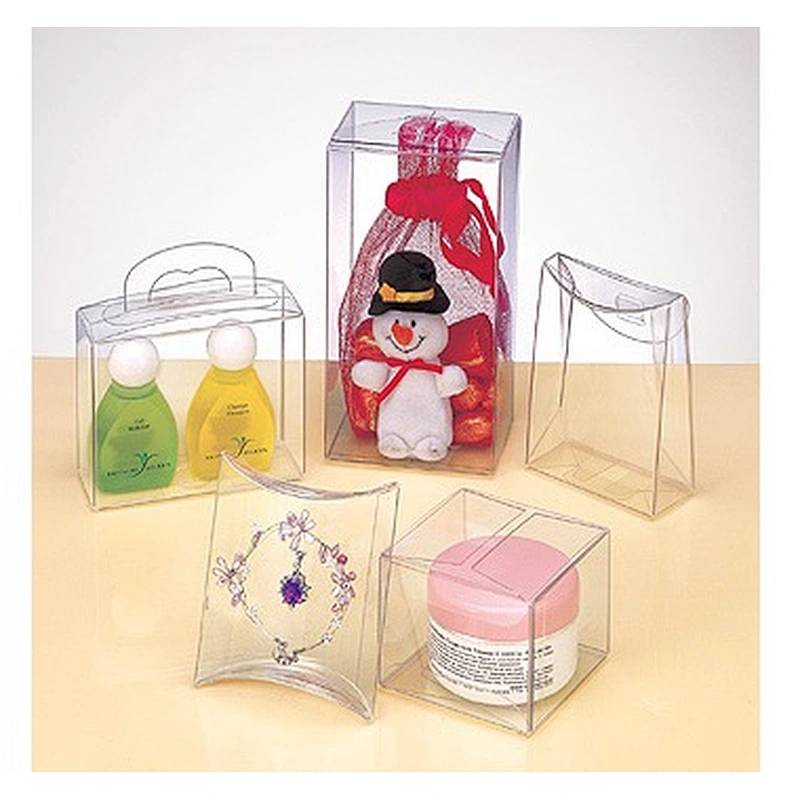

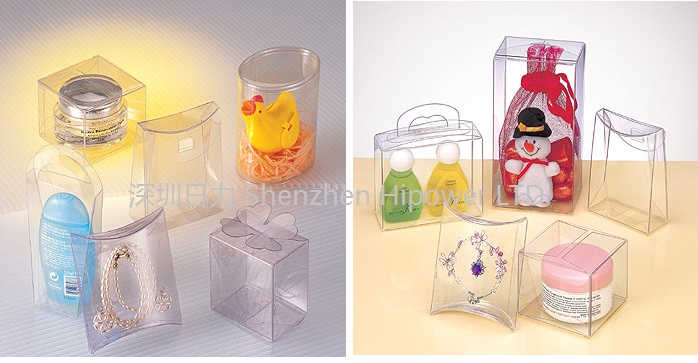

It is especially designed for Clear Packaging Boxes, soft crease box forming, PVC & PET folding box, Transparent Foldable plastic box making.
The plastic box can be made of PVC, PET, APET, PETG, GAG, and other Eco-friendly plastic films.
Depend on plastic material type: Film Sheets or Plastic Roll, you can choose a semi-auto machine, or an automated machine.
Technical Specification:

Model： HR-15KW -30T
H.F power： 15000W
Power Supply： 380V 50/60HZ
Frequency： 27.12MHZ
Input power： 25KVA
Rectifier： Silicon diode
Vibrational tube： 8T85RB
Max pressure： 30 Tons
Gap of electrode： 200mm
Stroke： 175mm
Size of up electrode： 600x800mm
Size of down electrode： 600x800mm
welding time： 0---10s
